Name: 1-15300432-1 Fuel Injector for 6BG1 Engine
Brand: GUANGZHOU JIAJUE TRADING CO.,LTD
SKU: 6BG1
Price: 50,000,012.00 USD
Availability: InStock

Informação detalhada

Nome do produto:	1-15300432-1 Injetor de combustível para motor 6BG1	material:	Aço
Lugar de origem:	Guangdong,China	Quantidade mínima:	1
OEM:	apoiar
Destacar:	6BG1 engine fuel injector , Diesel fuel injector with warranty , Fuel injector for 6BG1

Descrição de produto

1-15300432-1 Fuel Injector for 6BG1 Engine

Product Overview

High-quality fuel injector specifically designed for 6BG1 engines, manufactured with precision engineering for optimal performance and reliability.

Product Specifications

Product Name	Fuel Injector
Part Number	1-15300432-1
Engine Model	6BG1
Type	Engine Parts
Place of Origin	GUANGZHOU
Brand Name	JIAJUE
MOQ	1 Piece
Condition	New
Availability	Rich Stock
Approximate Weight	1KG
Size (per piece)	20cm x 5cm x 8cm
Warranty	3 Months
Shipment	Dispatched within 3 days

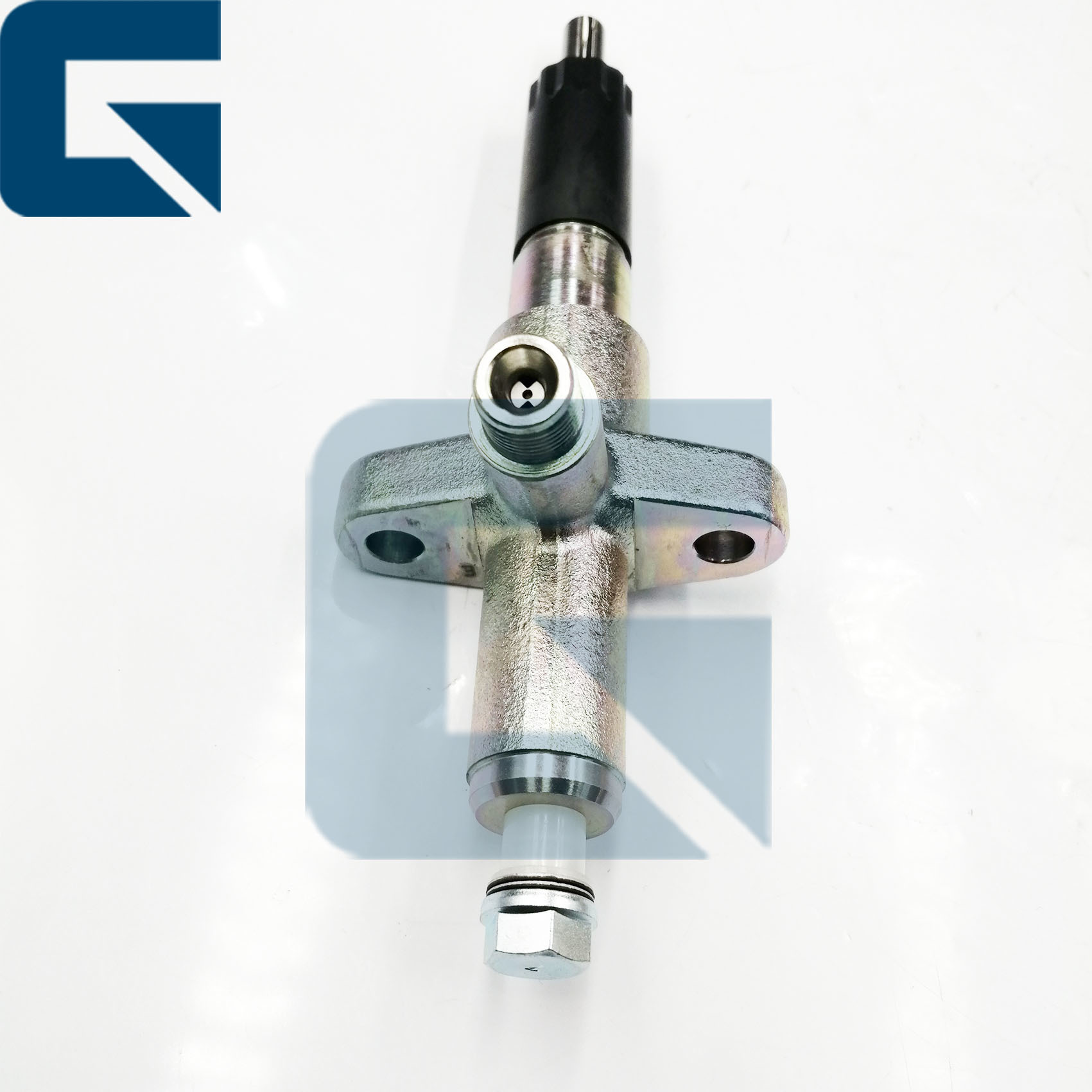

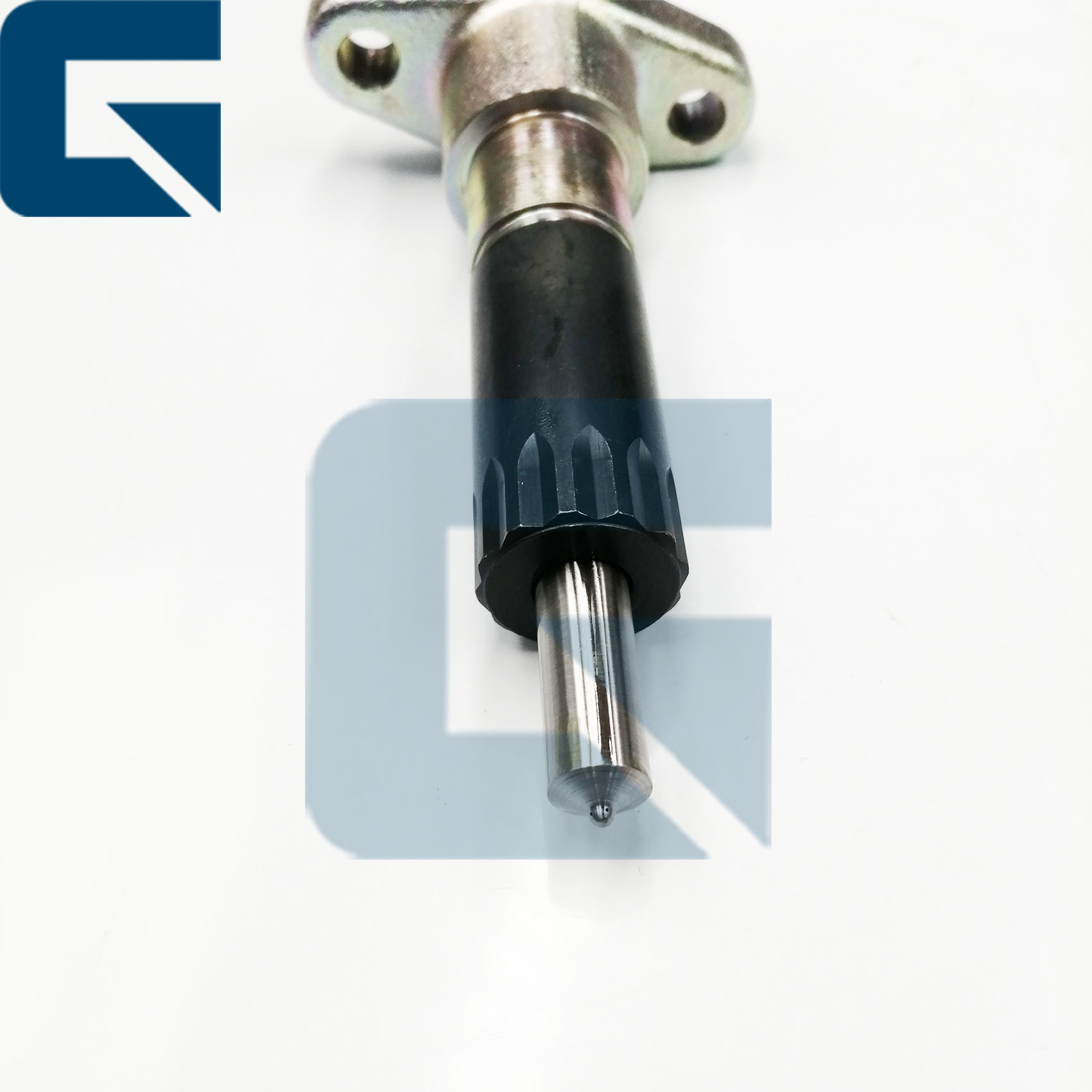

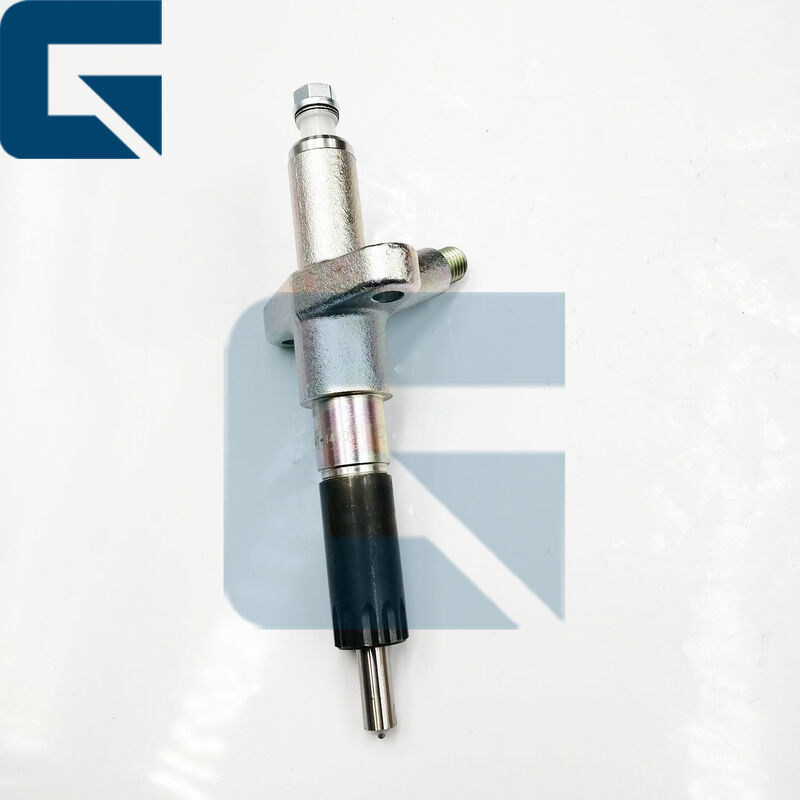

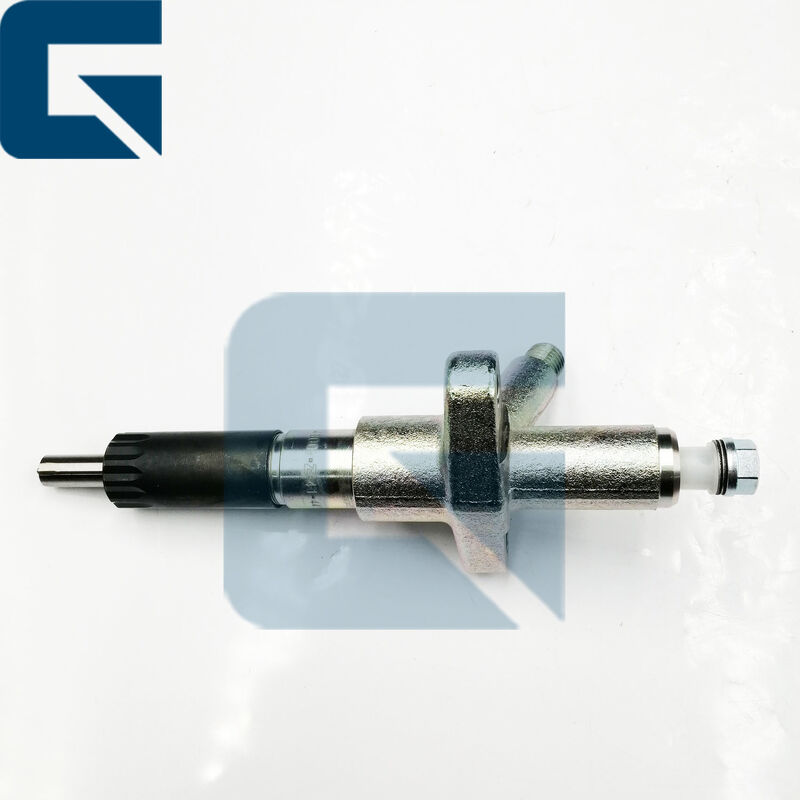

Product Images

Frequently Asked Questions

Q1: How do I install my fuel injector after purchasing it?

Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.

Q2: What precautions should I take before installing my fuel injector?

The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.

Q3: Why is my engine still unusable after replacing the fuel injector?

This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.

Q4: Is my device compatible with this part number of fuel injectors?

If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.

Q5: How to determine if your fuel injectors need replacing?

Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.

Q6: How long will it take to receive my package after payment?

Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.

Step-by-Step Installation Guide

HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.

2. Lubrication: Apply clean engine oil to the three O-rings and backup rings.

Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.

3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.

4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.

5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.

Troubleshooting Guide

Issue	Root Cause	Solution
Black Smoke	Poor spray atomization or stuck needle valve causing dripping	Inspect the air filter
Hard Start	Internal leakage in the injector leading to insufficient starting oil pressure	Inspect the injector O-rings and internal seals
Engine Misfire	Faulty solenoid valve coil or worn internal valve components	Inspect wiring harness connections and replace damaged injectors

etiqueta:

Lugar de origem:	China
Marca:	Jiajue
Número do modelo:	6BG1

Quantidade de ordem mínima:	1 unidade
Detalhes da embalagem:	O injetor de combustível 1-15300432-1 para o motor 6BG1 é embalado em embalagem padrão de exportação
Tempo de entrega:	1-5 dias úteis
Termos de pagamento:	L/C,D/A,D/P,T/T,Western Union,
Habilidade da fonte:	100 unidades/mês
