9U-5132 9U5132 Timing and Fuel System Setting Tool Group for Engine 3508 3508B

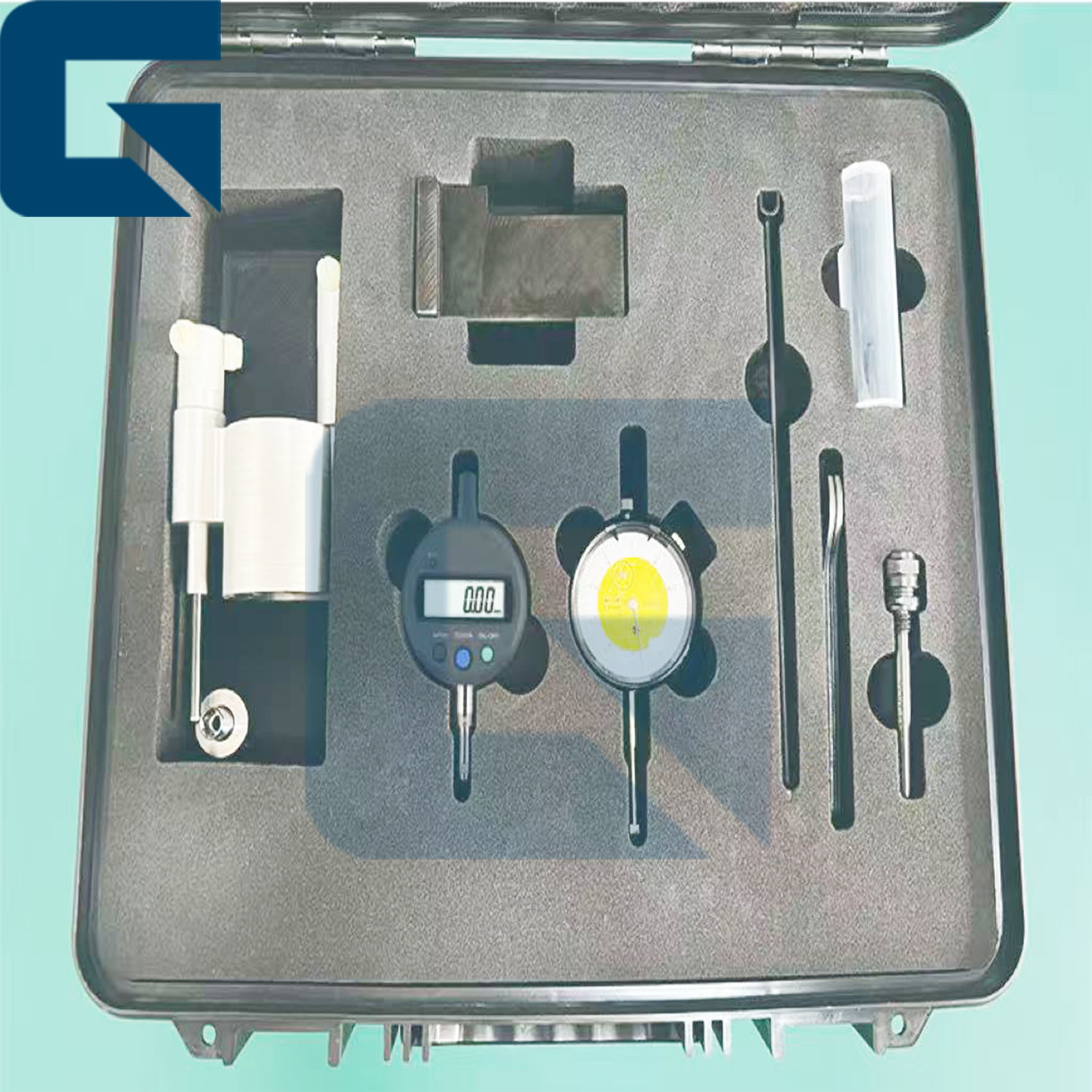

9U-5132 Timing and Fuel System Setting Tool Group includes the following items:

• 9U-5137 Timing Fixture

• 4C-8753 Extended Collet

• 9U-5138 Set Gauge

• 6V-3075 Metric Dial Indicator

• 1U-8869 Digital Dial Indicator (Optional)

• 6V-7918 Wrench

• 8T-2684 Rack Synchronization Gauge, 12.7 mm (.50 in)

• 9U-5220 Extension Rod

• 9U-6273 Rod Sleeve Extension

• 122-0449 Rod Sleeve Extension

• 122-0451 Extension Rod

• 129-8602 Solenoid Driver

• 5P-7263 Contact Point 76.2mm

• 9S-8883 Contact Point 12.7mm

• 8S-3675 Contact Point 3mm


The Fuel System Setting Timing Tool is used to achieve accurate synchronization of fuel system components. It ensures that the fuel injectors and pump are aligned correctly with the engine's timing, maintaining engine performance and fuel efficiency.

Accurate calibration helps prevent engine knock, reduces emissions, and improves overall operational smoothness. It plays a necessary role in both routine maintenance and troubleshooting to ensure the engine operates at peak efficiency.
